01 The Power Generator

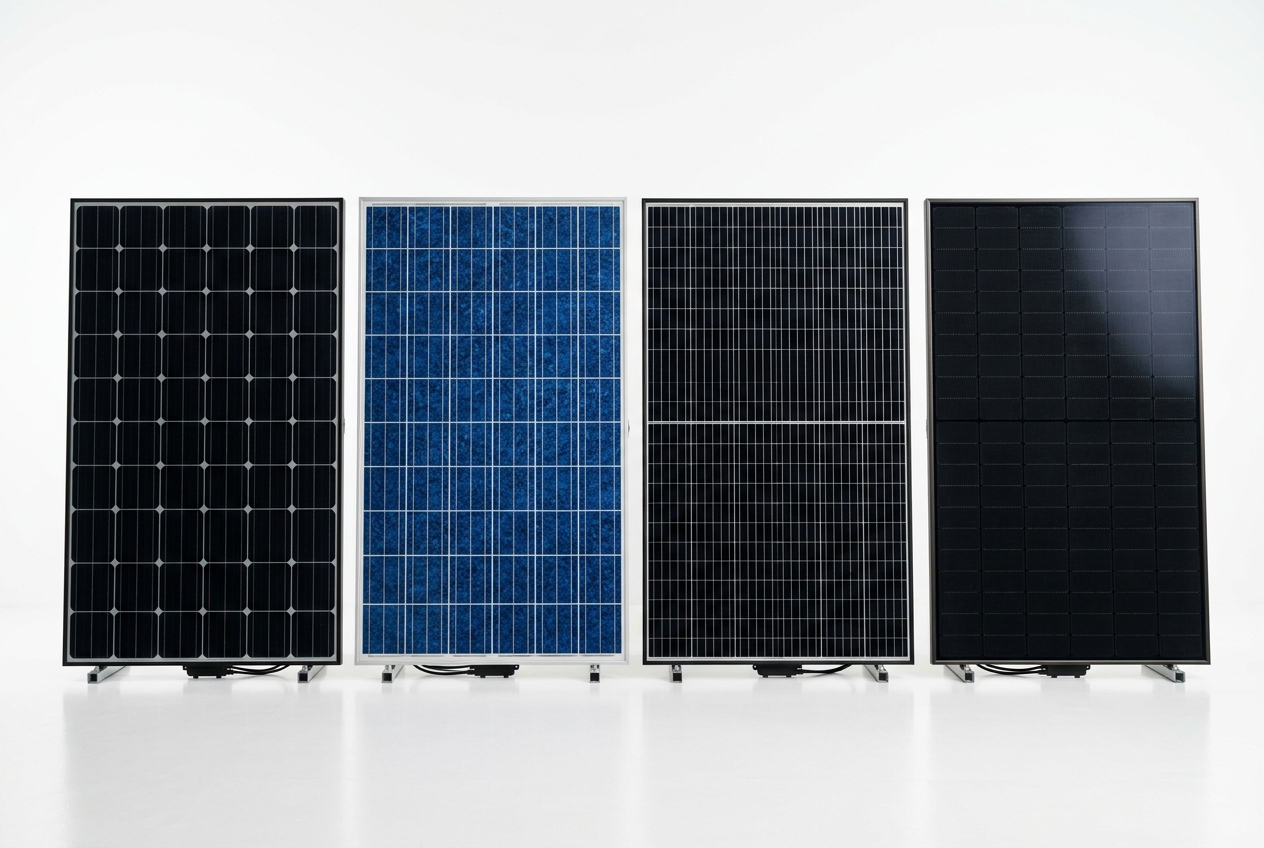

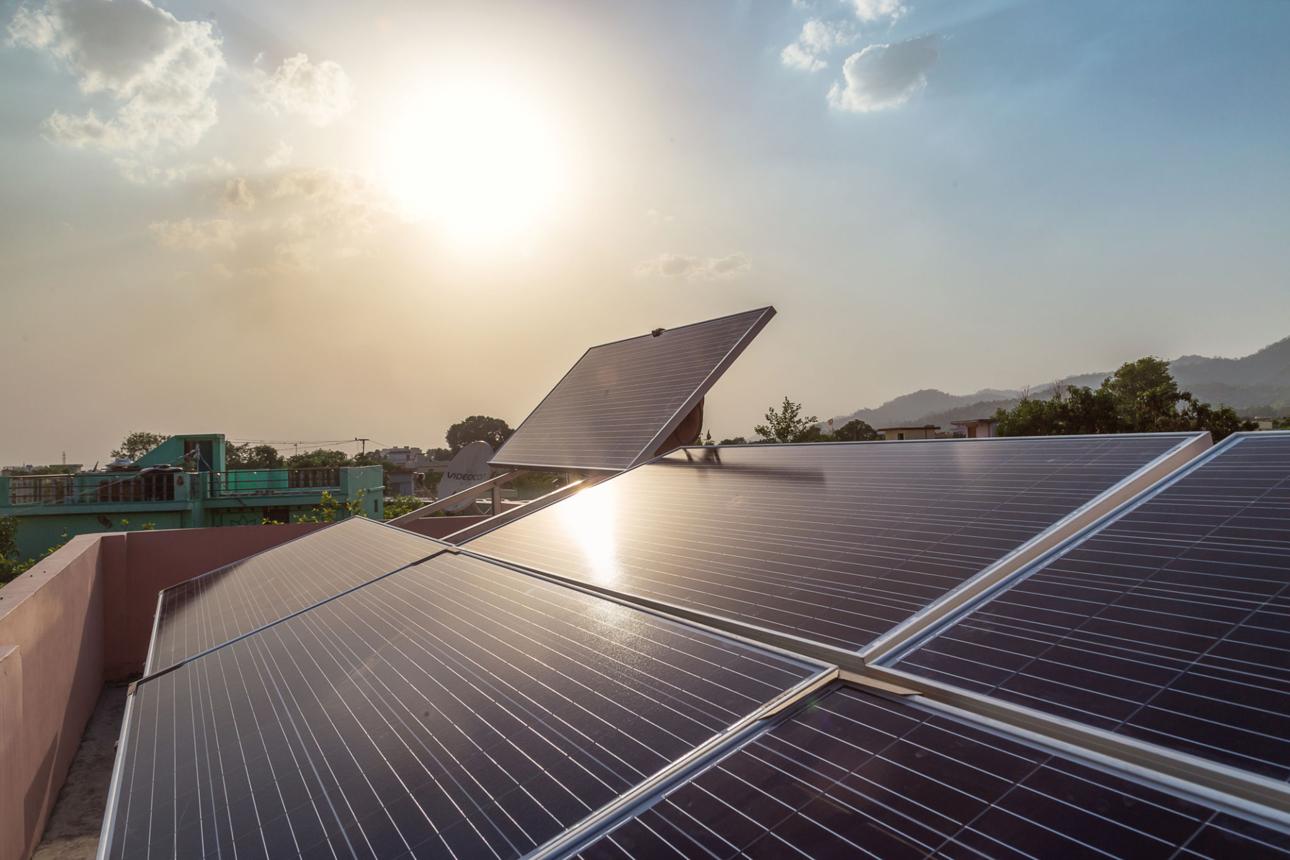

## Solar Panels

Solar panels are the heart of any solar power system. They capture sunlight and convert it into direct current (DC) electricity through the photovoltaic effect.

- Monocrystalline — High efficiency (20–23%) and long lifespan. Best for limited roof space.
- Polycrystalline — More affordable but slightly less efficient (16–18%). Good for larger roofs.
- TOPCon — Higher efficiency and better low-light performance. Leading technology today.
- HJT (Heterojunction) — Premium technology with excellent low-temperature performance and minimal degradation.

02 The Support System

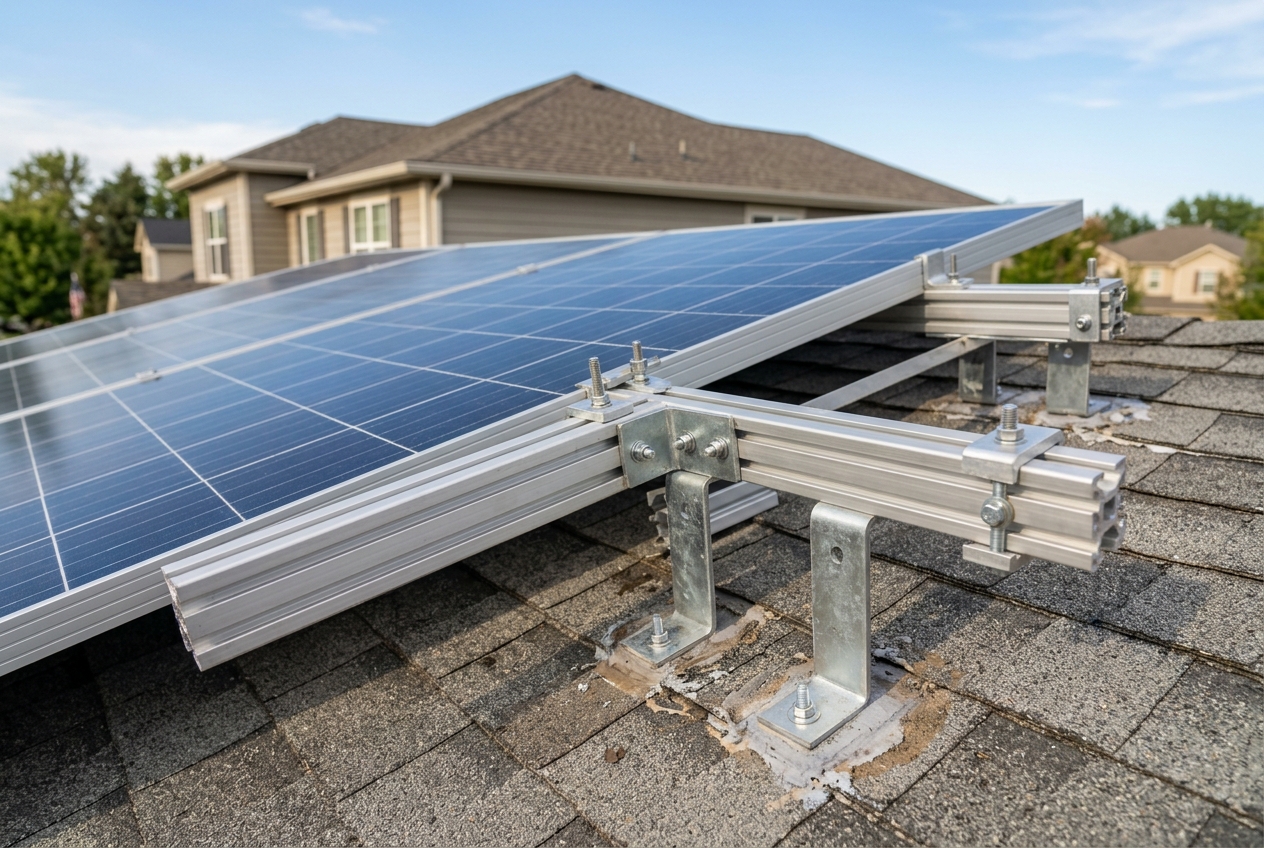

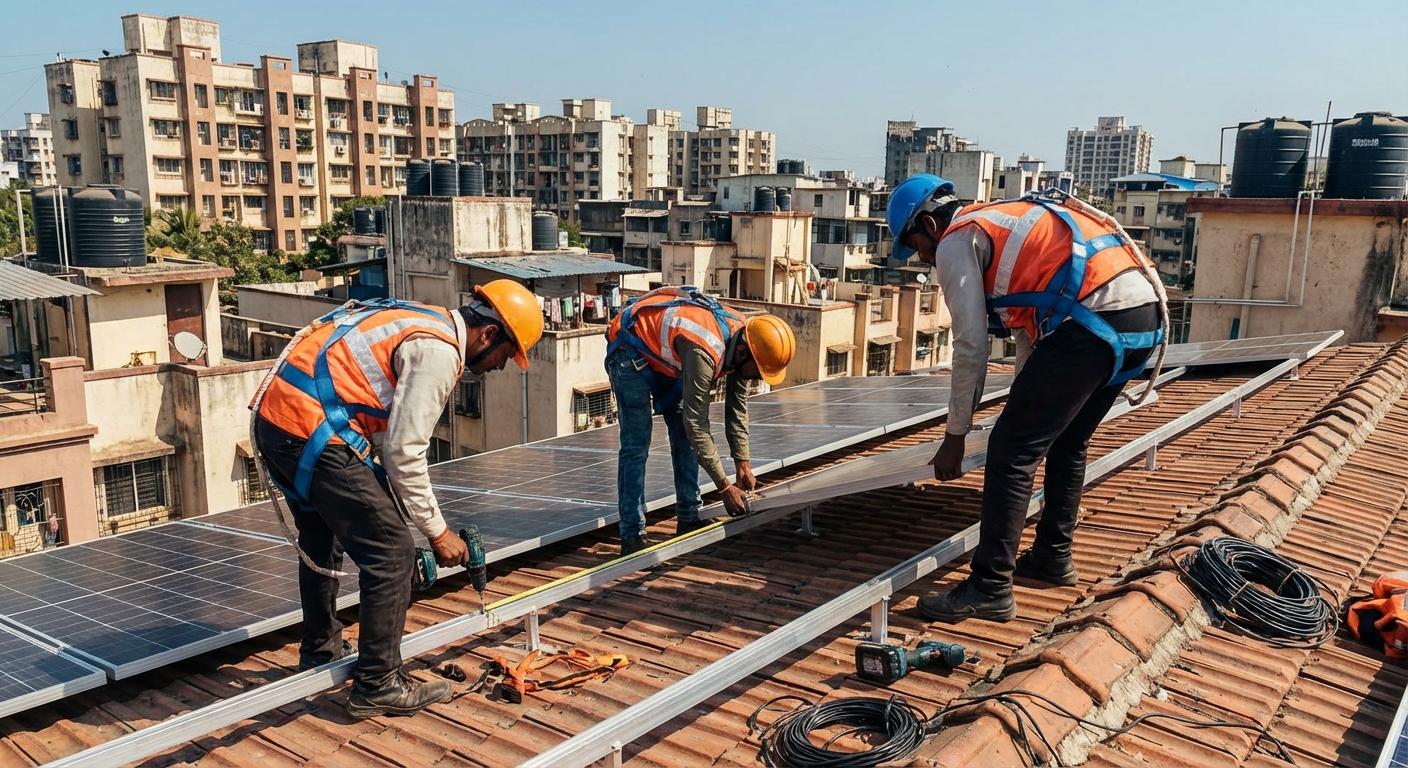

## Mounting Structures

Mounting structures hold your solar panels securely in place, withstanding wind loads, rain, and decades of exposure. The right structure ensures optimal tilt angle for maximum solar yield.

- Galvanized Steel Structure — Corrosion-resistant framing providing long-term structural integrity.
- Aluminum Rails — Lightweight yet strong rails that panels are fixed to.
- Mid & End Clamps — Clamps that securely grip panels to the rails without drilling.
- Fasteners & Anchors — Stainless steel hardware rated for wind and seismic loads.
- Waterproof Accessories — Flashing kits and sealants to prevent water ingress at penetration points.

03 Converts DC to AC Power

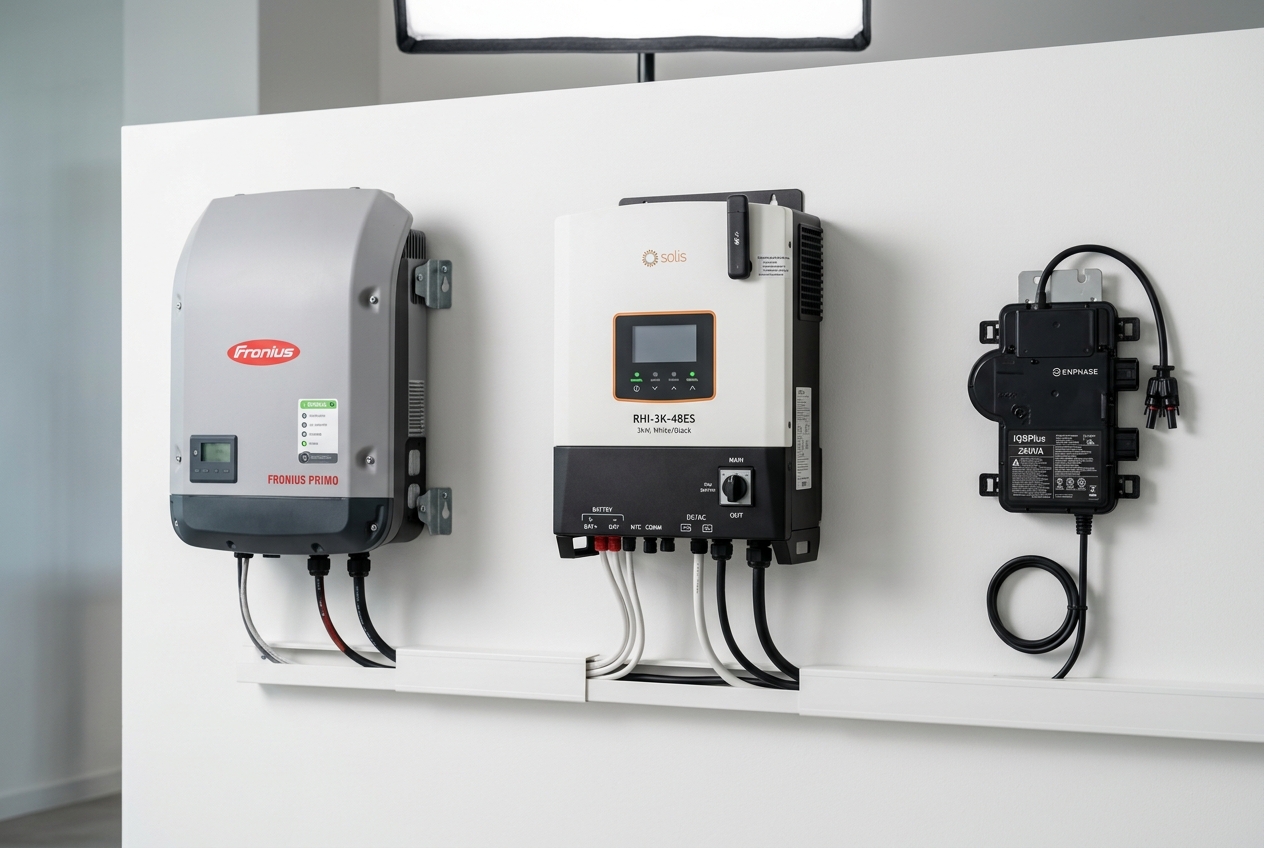

## Solar Inverter

The inverter is the brain of your solar system. It converts the DC electricity generated by panels into AC electricity that powers your home appliances.

- String Inverter — Most common and cost-effective. Connects all panels in series.
- Hybrid Inverter — Manages panels, battery storage, and grid connection simultaneously.
- Microinverter — Fitted per panel for maximum output — ideal when panels face different directions.
- Central Inverter — Large-scale solution for commercial and industrial installations.

04 The Wiring & Protection Layer

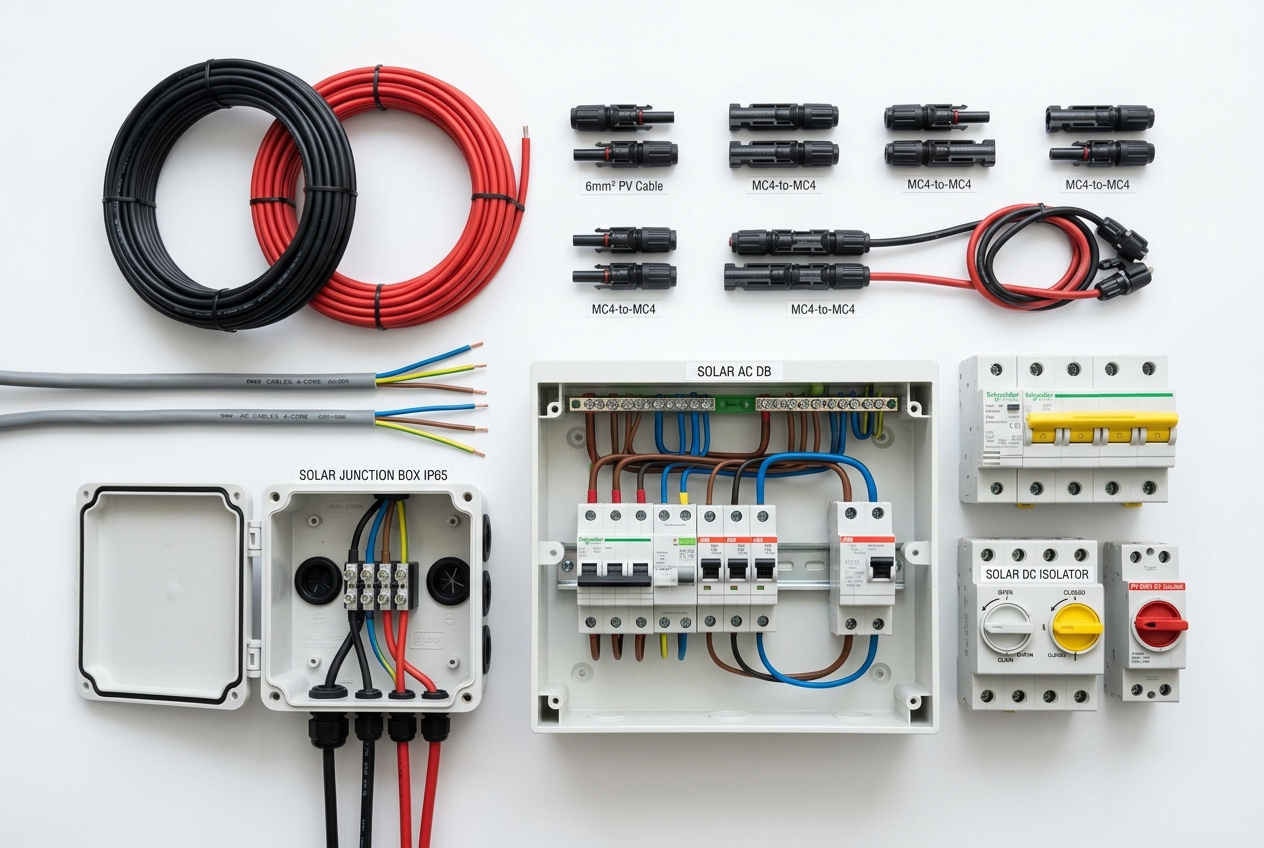

## Electrical Components

Proper electrical components ensure safety, efficiency, and compliance with local electrical codes throughout your solar installation.

- DC & AC Cables — UV-resistant, insulated solar cables rated for outdoor use.
- MC4 Connectors — Industry-standard waterproof connectors for panel-to-panel linking.
- Junction & Combiner Boxes — IP65-rated enclosures where strings of panels are combined.
- Circuit Breakers & Isolators — Protection devices that disconnect power safely during maintenance.
- Distribution Boards — Organises AC circuits and provides overcurrent protection.

05 Store Power for Later Use (Optional)

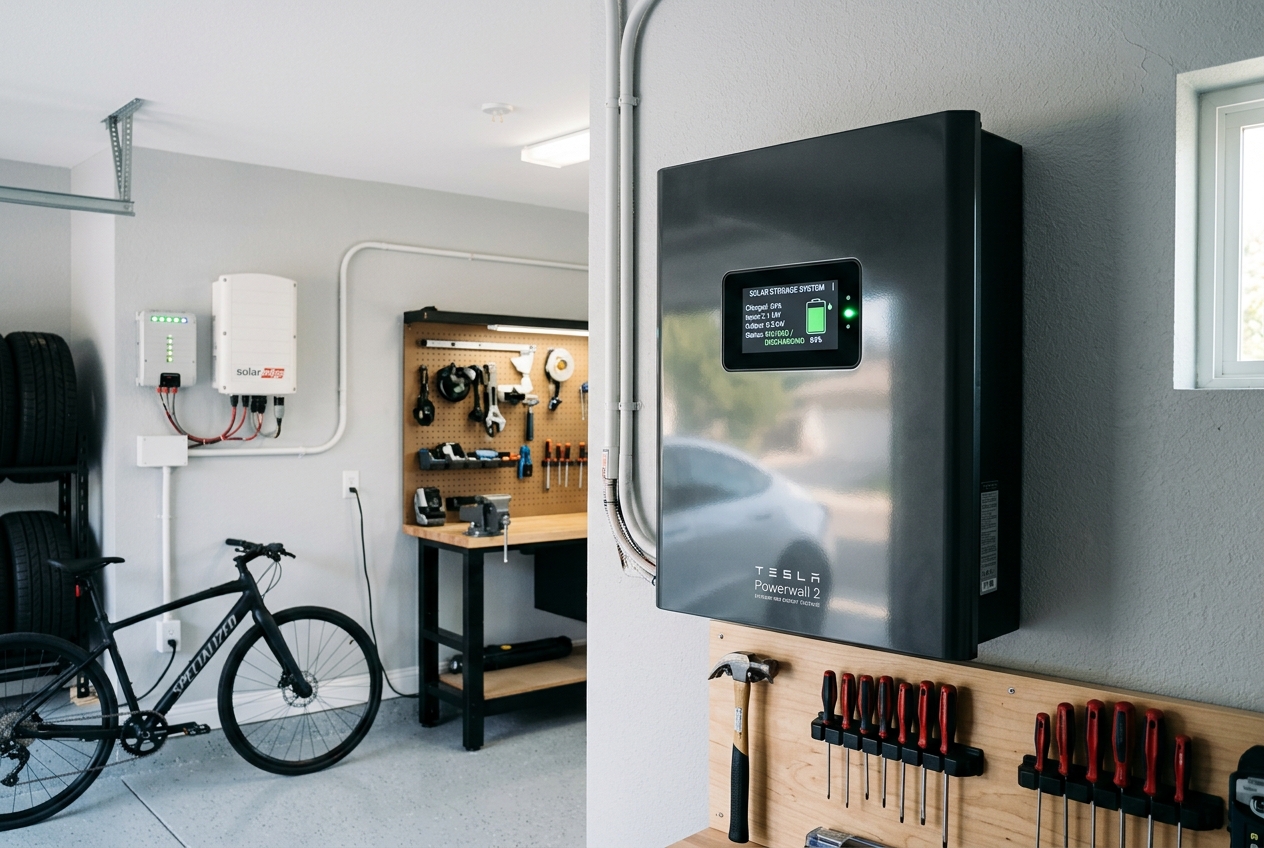

## Battery Storage

Battery storage lets you save excess solar energy generated during the day and use it at night or during grid outages — maximising self-consumption.

- Lithium-Ion Batteries — High energy density, long cycle life (4,000–6,000 cycles), and low maintenance.
- Battery Cabinet — Weatherproof enclosure housing the battery cells safely.
- Battery Inverter — Manages charge and discharge cycles for optimal battery health.
- Battery Management System (BMS) — Monitors cell voltage, temperature, and state-of-charge in real time.

06 Keeping Your System Safe

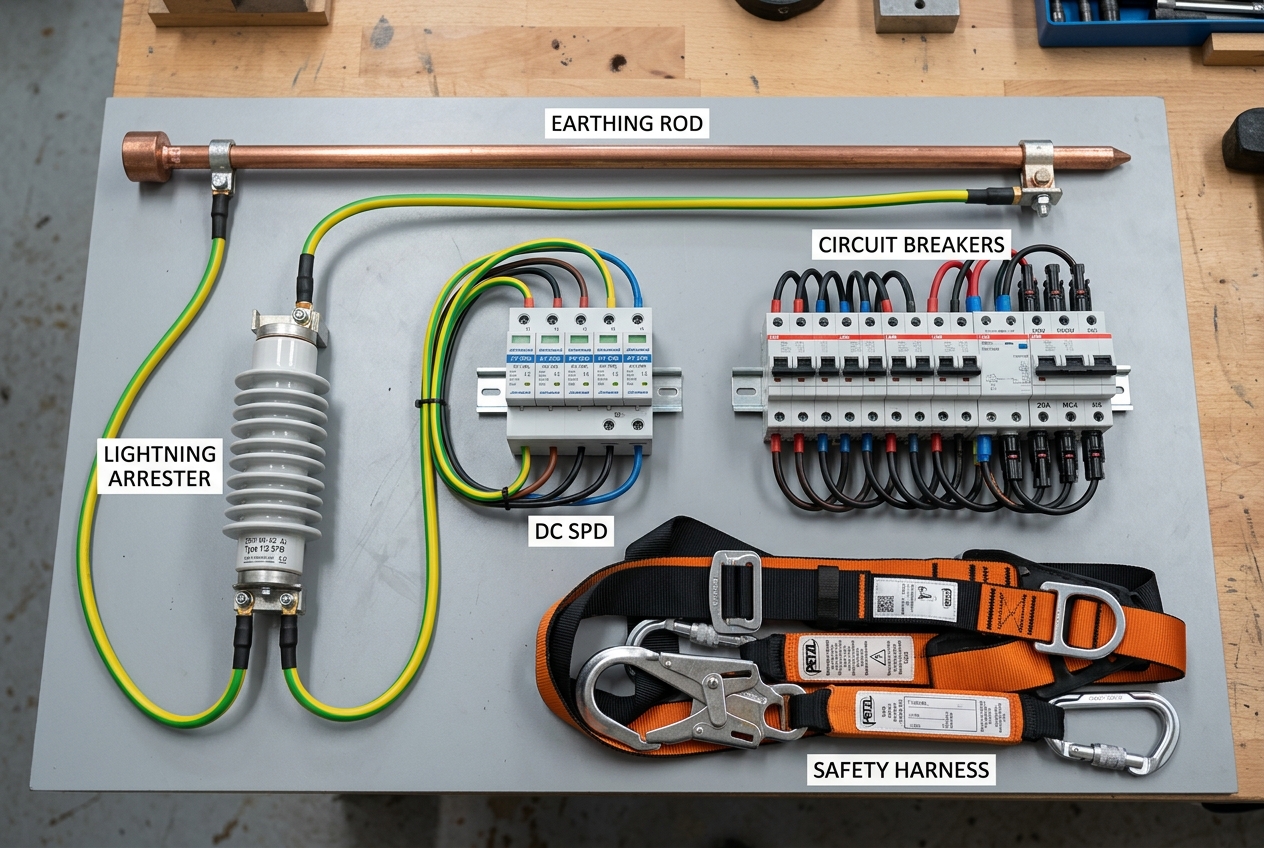

## Protection & Safety

Safety equipment protects your system, your property, and the people who install and maintain it — essential for any compliant solar installation.

- Earthing System — Copper earth rods and conductors protect against electric shock.
- Lightning Arrester — Diverts lightning surge away from the system safely.
- Surge Protection Devices — SPDs clamp voltage spikes on both DC and AC sides.
- Circuit Breakers — Automatically disconnect in case of overload or short circuit.
- Safety Harnesses & PPE — Personal protection equipment used by installation crews on rooftop.

07 Track Every Watt in Real Time

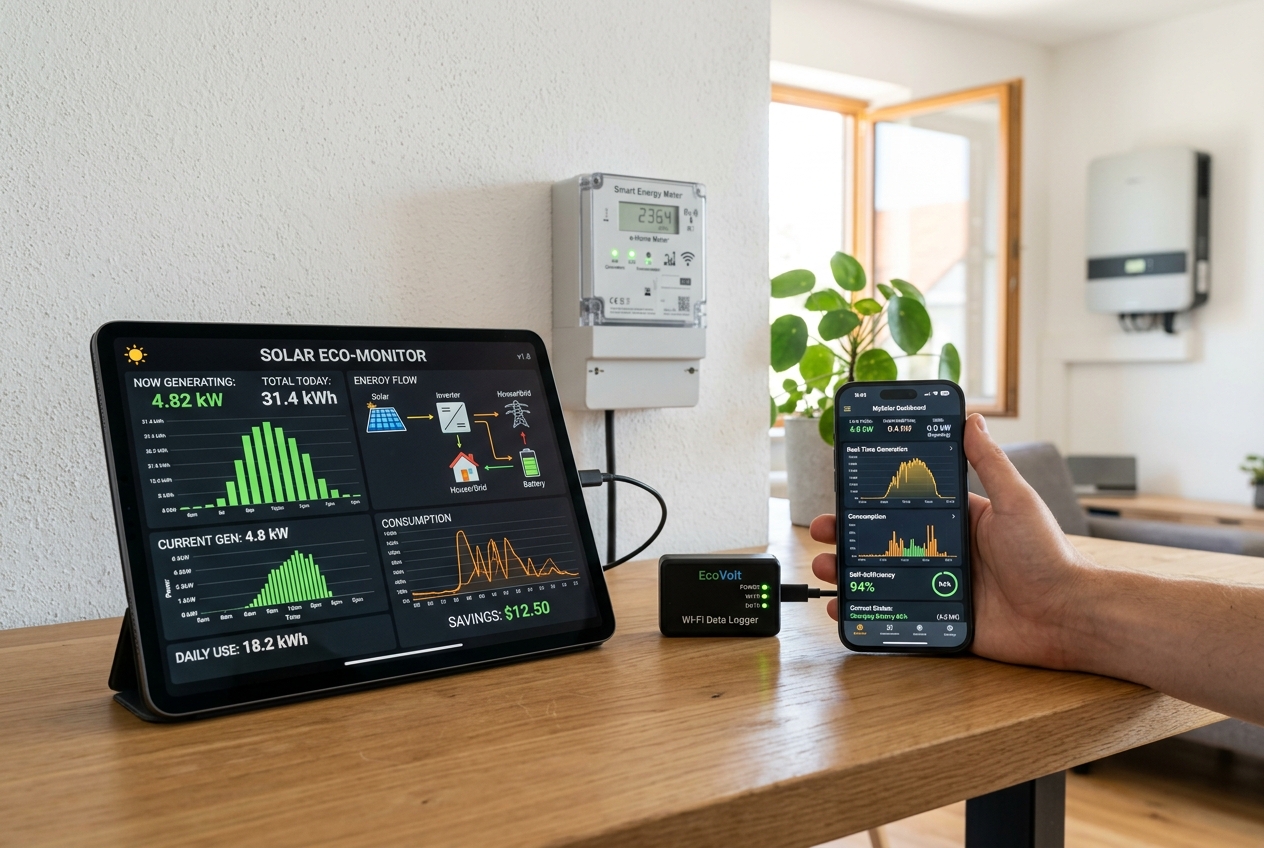

## Monitoring System

A monitoring system gives you full visibility of your solar system's performance — helping you catch issues early and prove your return on investment.

- Smart Energy Meter — Measures import, export, and self-consumption at the meter point.
- Wi-Fi Data Logger — Sends inverter data to the cloud every few minutes wirelessly.
- Monitoring Dashboard — Web portal showing generation, consumption, and savings history.
- Mobile Application — iOS and Android app for on-the-go performance tracking.
- Remote Monitoring Software — Our engineers monitor your system 24/7 for alerts and anomalies.

08 Engineering Before Installation

## Site Survey & Design

Every CloudHelio installation starts with a thorough site survey. Our engineers evaluate your roof and energy usage before a single panel is ordered.

- Roof Size & Strength — Load-bearing capacity and available panel area are measured precisely.
- Sunlight Availability — Solar path analysis using irradiance data for your exact location.
- Shading Analysis — Trees, water tanks, and neighbouring buildings are mapped for shadow impact.
- Tilt Angle Optimisation — Ideal panel angle calculated for maximum annual yield.
- Electricity Consumption — Your bills are analysed to right-size the system.
- System Capacity Design — Final kWp and battery sizing recommendation with payback projection.

09 How It All Works Together

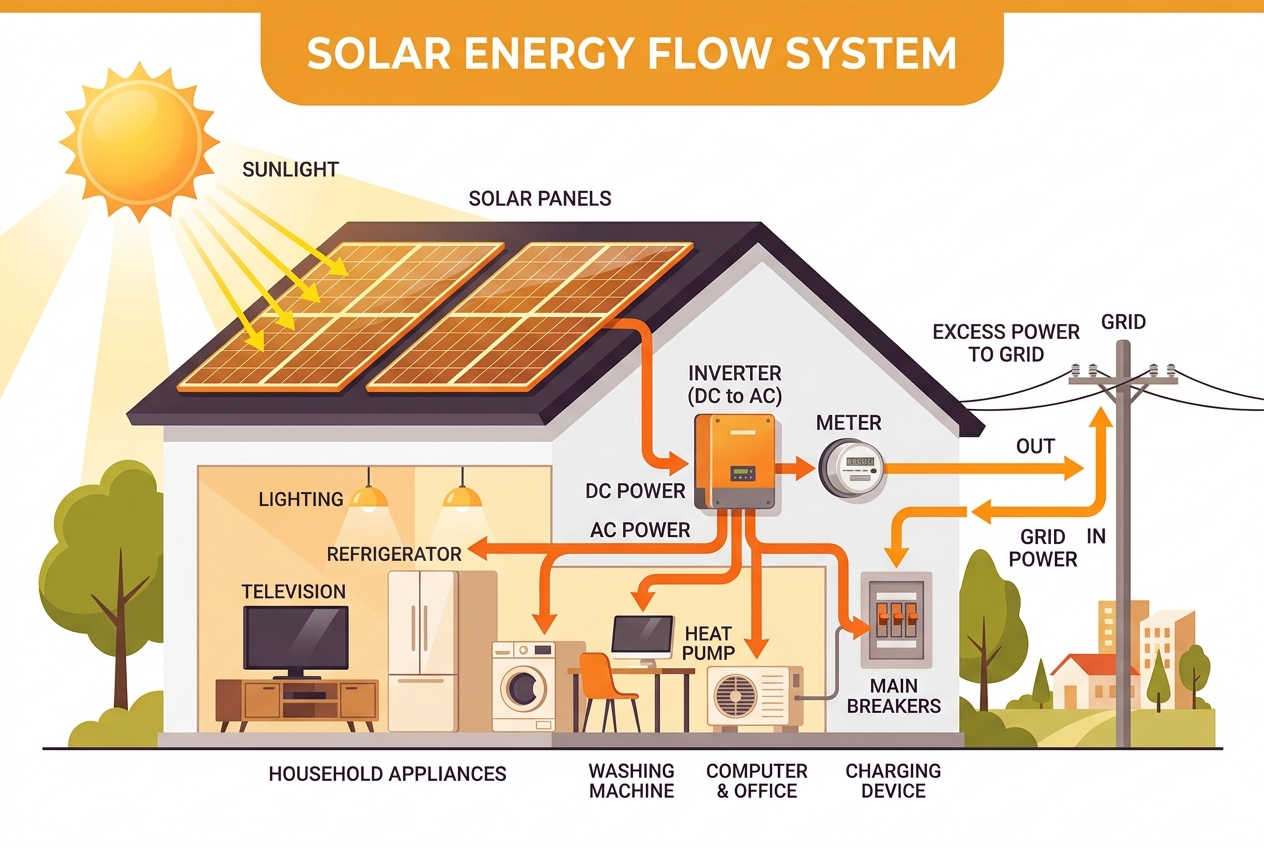

## Complete Energy Flow

Once all components are installed, here's the full journey of energy — from sunlight on your roof to powering your appliances and feeding the grid.

- ☀️ Sun — Solar radiation hits the panel surface and excites electrons.
- 🔋 Solar Panels — Generate DC electricity proportional to sunlight intensity.
- ⚡ Inverter — Converts DC to household AC (230V, 50Hz in India).
- 🏠 Home Appliances — AC power runs lights, fans, ACs, and all other loads.
- 🔌 Grid or Battery — Excess power is exported to the grid or stored in batteries for night use.
